High Speed Bottle Packaging Equipment 180 Degree Turn Water Packaging Bottle Machine
|
High Speed Bottle Packaging Equipment 180 Degree Turn Water Packaging Bottle Machine
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Features:
High-Speed No-Wait 180-Degree Turn Packaging Secondary Bag
Sorting Method:
Horizontal Packaging Arrangement, Robotic Gripper Bottle Feeding, Automatic Bag Feeding
Scope Of Application:
Suitable For 100ml To 5L Bottle Sizes Across Various Industries
Production Capacity:
Taking A 500ml Bottle Requiring Two Sleeve Applications As An Example, Production Capacity Typically Ranges From 6,000 To 10,000 Bottles Per Hour.
Equipment Dimensions:
L9000mm*W1880mm*H2400mm
Automatic Grade:
Automatic
Fastest Cycle Time For Single-row Bottle Arrangement:
3 Seconds/row
Push Tho Bottle Inlo The Bag To The Reverso Beat:
8sec/round Trip
Warranty:
1 Year
Highlight:
bottle packaging equipment
,bottle packaging equipment 180 Degree Turn
,3 seconds/row water packaging bottle machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
70-D Automatic Packaging Machine with High-Speed No-Wait 180-Degree Turn Packaging and Automatic Bag Feeding for 6,000 to 10,000 Bottles per Hour

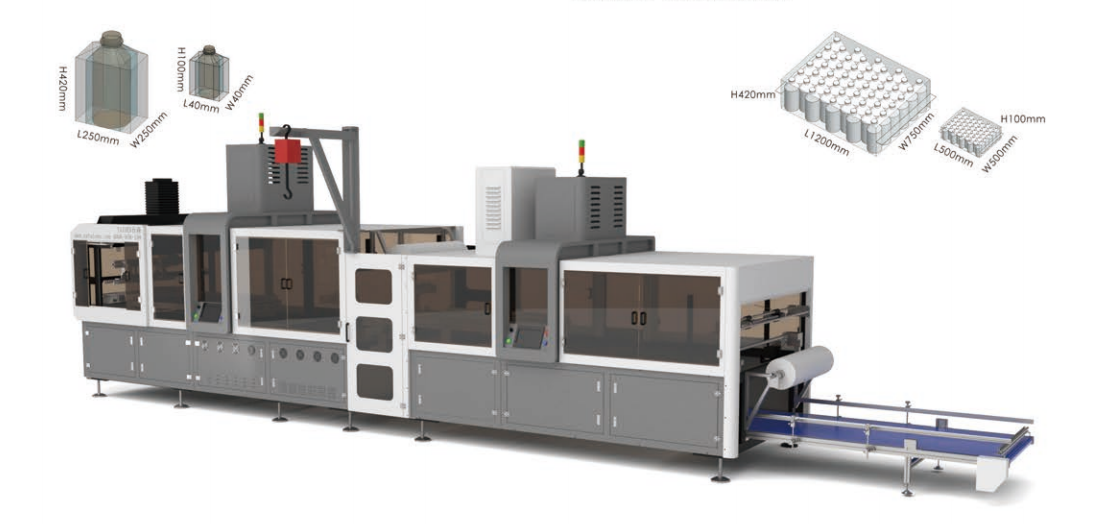

70-D Automatic Packaging Machine
Key Equipment Characteristics
High-speed automatic packaging machine featuring 180-degree adjustable encapsulation for second bag operations, horizontal arrangement encapsulation, and robotic bottle clamping. Designed for automatic bag supply and suitable for various industries handling 100ml-5L bottles.
- Maximum encapsulation size: 1200mm × 750mm × 420mm
- Production capacity: 6,000-10,000 bottles/hour (500ml bottles require two sets)
Technical Specifications
| Equipment Dimensions: | 9000mm × 1880mm × 2400mm |
| Frame Material: | 40mm × 80mm × 4.0mm Carbon Steel |
| Appearance: | Sheet Metal Spraying Gray/White |
| Input Gas Source: | 0.6-0.8MPa |
| Input Voltage: | 380V 50Hz |
| Max Gas Consumption: | 10L/min |
| Max Power Consumption: | 8KW/H |
| Max Package Size: | 1200mm × 750mm × 420mm |
| Min Package Size: | 500mm × 500mm × 100mm |
| Package Arrangement: | Horizontal Arrangement |
| Fastest Cycle Time: | 3 seconds/row |
| Bottle Feeding Time: | 8 seconds/round trip |
| Max Bottle Dimensions: | Ø250mm × H420mm or 250mm × 250mm × 420mm |
| Min Bottle Dimensions: | Ø40mm × H100mm or 40mm × 40mm × 100mm |
| Docking Height: | 1200-1000mm Adjustable |
| Bottle Feeding Method: | Robotic Manipulator Clamping |
| Max Production Capacity: | 80 bags/hour |
Performance Features
| Feature | Setting/Function |
|---|---|
| Bag Type: | Rolled Bag |
| Bag Supply Mode: | Automatic with Second Bag Supply |
| Bottle Jam Alarm: | Yes |
| Card Wallets Alarm: | Yes |
| Number of Sealing Lines: | 2 |
| Broken/Missing Bag Alarm: | Yes |
| Bag Sealing & Tightening: | Yes |
| Remote Communication: | Yes |
| System Operation Authority: | 3 Levels |
| Bag Opening Height Adjustment: | Automatic |
| Bag Opening Width Adjustment: | Manual/Automatic |
| Bag Mouth Sealing Adjustment: | Automatic |
| Bottle/Bag Pressing Height: | Automatic |
| Packaging Station Width: | Manual/Automatic |
| Bag Length Adjustment: | Automatic |
| Bag Width Adjustment: | Automatic/Manual |
| Bag Roll Material Adjustment: | Mechanical Quick Manual |
| Bag-Out Conveyor Distance: | Automatic |
Payment & Trade Terms
| Product Model | 70-D Automatic Packaging Machine |
| VAT Status | Included |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears local expenses for engineer) |
After Sales Service
Quality Assurance: Full product quality traceability with 1-year warranty period from equipment acceptance date.
Maintenance Services: Free maintenance during warranty period. Travel and material costs apply for services beyond warranty.
Remote Support: Free remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
