4000 - 5000bottles/Hour Automatic Bottle Packaging Machine Line 100ml - 2500ml
|
4000 - 5000bottles/Hour Automatic Bottle Packaging Machine Line 100ml - 2500ml
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Features:
The Equipment Features A Compact Footprint And Enables Rapid Changeovers And Adjustments.
Sorting Method:
Horizontal Packaging Arrangement, Bottle Feeding, Automatic Bag Feeding
Scope Of Application:
Suitable For 100-2500ml Bottle Sizes Across Various Industries
Production Capacity:
Taking A 500ml Bottle As An Example，Production Capacity Is Typically Around 4,000 To 5,000 Bottles Per Hour.
Equipment Dimensions:
L4600mm*W1450+800mm*H1900mm
Maximum Power Consumption:
4KW/H
Automatic Grade:
Automatic
Warranty:
1 Year
Highlight:
5000bottles/hour automatic bottle packaging machine
,automatic bottle packaging machine 100ml
,2500ml bottle packaging line
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
32-11C/16C Automatic Packaging Machine with 4000-5000 bottles/hour capacity for 100-2500ml bottle sizes and automatic bag feeding

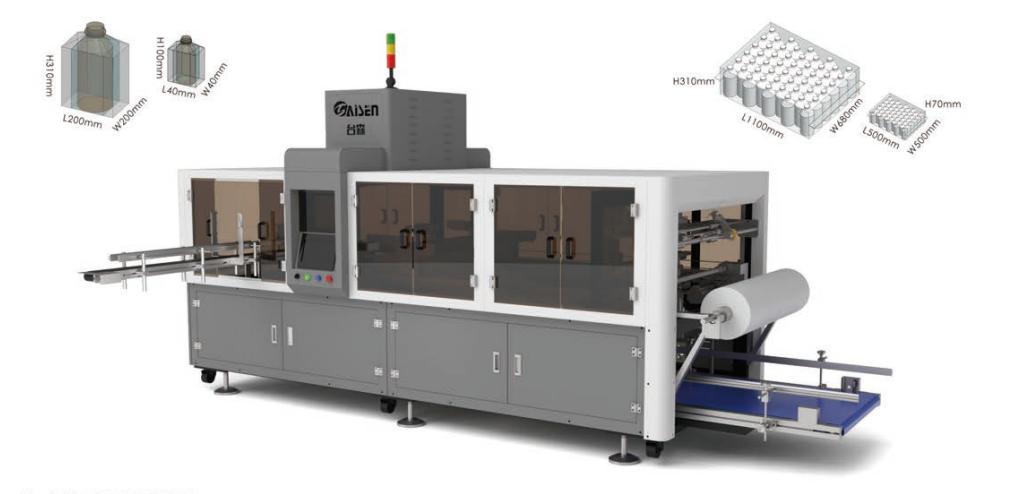

32-11C/16C Automatic Packaging Machine
Equipment Characteristics
The 32-11C/16C Automatic Packaging Machine features moderate volume design with quick changeover and adjustment capabilities. It employs horizontal arrangement encapsulation with conveying into the bottle, automatic bag supply, and is suitable for all industries handling 100-2500ml bottle types.
With encapsulation forming size up to 1100mm × 680mm × 310mm, this machine delivers production capacity of approximately 4,000-5,000 bottles per hour (based on 250ml bottle example).
Basic Performance Specifications
| Equipment Dimensions (L×W×H): | L4600mm × W1450+800mm × H1900mm |
| Maximum Package Size (L×W×H): | L1100mm × W680mm × H310mm |
| Minimum Package Size (L×W×H): | L500mm × W500mm × H70mm |
| Equipment Frame Material: | 40mm × 80mm × 4.0mm Carbon Steel |
| Equipment Appearance: | Sheet Metal Spraying Gray/White |
| Package Arrangement Form: | Horizontal Arrangement |
| Input Gas Source: | 0.6-0.8MPa |
| Input Voltage: | 380V 50Hz |
| Maximum Gas Consumption: | 10L/min |
| Maximum Power Consumption: | 4KW/H |
| Maximum Applicable Bottle Dimensions: | Ø200mm × H310mm; L200mm × W200mm × H310mm |
| Minimum Applicable Bottle Dimensions: | Ø40mm × H70mm; L40mm × W40mm × H70mm |
| Fastest Cycle Time for Single-Row Bottle Arrangement: | 7 seconds/row |
| Push Bottle into Bag to Reverse Beat: | 15sec/round trip |
| Docking Height of Bottle Feeding Conveyor: | 1100-900mm Adjustable |
| Bottle Feeding Method: | Bottle Feeding |
| Fastest Single-Package Production Capacity: | 80 bags/hour |
Actual capacity subject to packaging specifications
Performance Characteristics
Use of plastic bags: Rolled bag
Equipment bag supply mode: Automatic
Automatic Bottle Jam Alarm Function: Yes
Automatic Alarm Function for Card Wallets: Yes
Number of sealing lines: 2
Broken Bag/Missing Bag Alarm Function: Yes
Bag sealing and tightening function: Yes
System Remote Communication Function: Yes
System operation authority: 123 Level
Changeover Adjustment Point 1: Manual
Adjustment Point 2 for Production Changeover: Automatic
Adjustment Point 3 for Changeover: Manual / Auto
Adjustment Point 4 for Product Changeover: Auto
Adjustment Point 5 for Changeover: Manual / Auto
Change production settings for part 6: Manual / Auto
Adjustment Point 7: Auto
Change production settings for part 8: Manual / Auto
Adjustment Point 9: Auto
Adjustment Point 10: Auto
Change production settings for part 11: No need adjustment
Change production settings for part 12: Auto
Change production settings for machine part 13: Manual / Auto
Change production settings for part 14: Auto
Change production settings for part 15: Auto
Adjustment Point 16: No need adjustment
Adjustment Point 17: No need adjustment
Change production settings for part 18: Manual
Change production settings for part 19: Mechanical Quick Manual Adjustment
Adjustment Point 20: Auto
Payment Terms and Trade Terms
| Description of Goods Model | 32-11C/16C Automatic Packaging Machine |
| Remarks | With VAT |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long time for software & system |
| Commissioning | Free commissioning within 3 days, customer bears engineer's local food, accommodation and tickets, extra time charged at USD 150/day |
After Sales Service
The overall product quality has traceability, with a product quality warranty period of 1 year, calculated from the date of equipment acceptance.
Free maintenance during the warranty period. After-sales service beyond the warranty period will incur corresponding travel and material costs.
Daily operation and maintenance services: Our company provides free remote operation and maintenance online services through Pinchi Tech AI cloud platform, particularly for system updating, algorithm setting, and software adjustment.
