Bottle Shrinking Machine
>

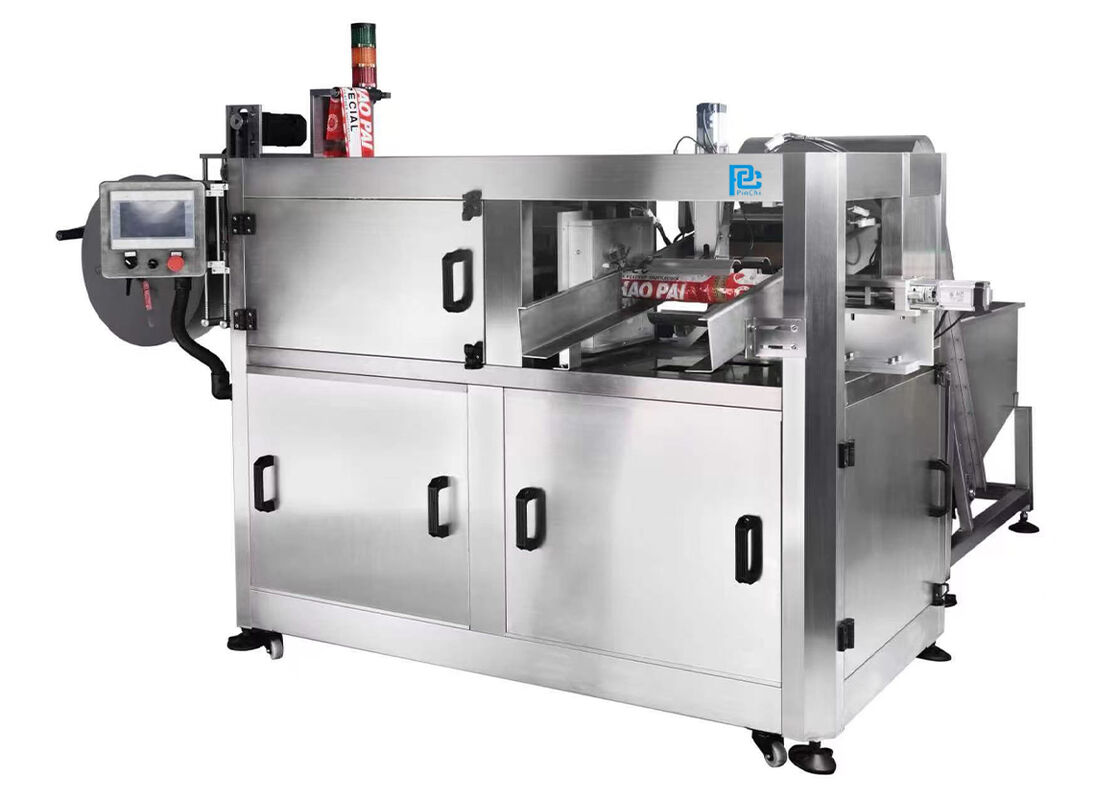

PE Round Bottle Hot Air Sleeve Shrinking Machine with Bushering Sleeve Function
|
PE Round Bottle Hot Air Sleeve Shrinking Machine with Bushering Sleeve Function
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Certification | c/e |
Product Details
Performance:
Combining Advanced Airflow Circulation Technology With A Uniquely Optimized Design, It Achieves Uniform Air Distribution And Exceptional Shrink Performance.
Conveying System:
The Conveying System Features A Novel Roller Design With A Silicone Coating, Offering High-temperature Resistance, Wear Resistance, No Film Scorching, No Deformation, And Extended Service Life.
Material:
Manufactured From Stainless Steel To Extend Service Life And Enhance Energy Efficiency.
Operational Power:
The Conveyor Belt And Air Circulation Motor Utilize Premium Components, Delivering Robust Power To Support Continuous Operation.
Scope Of Application:
Suitable For Multiple Shrink Film Specifications, Including PVC, POF, And PET.
Host Material:
Constructed From SUS304 Stainless Steel, It Is Waterproof, Rustproof, And Features A Sturdy Body.
Automatic Grade::
Full Automatic
Operating Speed::
3600 Units/hour At Normal Operation
Highlight:
3600units/hrBottle Shrinking Machine
,PET Bottle Shrinking Machine SUS304
,Round Bottle shrink tunnel machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Full Automatic PET Round Bottle Shrinking Film Machine with 3600 units/hour Capacity
PET Round Bottle Hot Air Sleeve Shrinking Machine with Bushering Sleeve Function
Advanced Shrink Wrapping Technology
Our PET Round Bottle Hot Air Sleeve Shrinking Machine incorporates bushering sleeve functionality for superior packaging performance.
Key Features
- Advanced airflow circulation technology with optimized design for uniform air distribution and superior contraction performance
- Constructed entirely from stainless steel for extended service life and high energy efficiency
- Premium electrical components including renowned brand switches and thermostats for stable operation and low failure rates
- High-performance conveyor and air circulation motors with robust power for continuous long-term operation
- Innovative roller design with silicone coating offering high-temperature resistance, wear resistance, and extended service life
- Compatible with various shrink film specifications including PVC, POF, and PET
Technical Specifications
| Main Unit Dimensions | 900L × 2000W × 2200H mm |
| Machine Weight | Approximately 200KG |
| Operating Temperature | Ambient ±5℃ |
| Power Supply | AC 2PH 50Hz 220V |
| Label Thickness | 0.035-0.08mm |
| Applicable Bottle Diameter Range | 25-40mm |
| Applicable Label Length | 50-150mm (Maximum) |
| Operating Speed | 3600 units/hour at normal operation |
| Power Consumption | 2.5KW |
The conveyor belt within the labeling machine section is powered and controlled by the labeling machine itself.
Product Visualization
Ordering & Trade Terms
| Product Model | PET Round Bottle With Hot Air Sleeve Shrinking Machine With Bushering Sleeve Function |
| Tax Information | With VAT |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term support for software & system |
| Commissioning | Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; additional time charged at USD 150/day |
After-Sales Service & Support
- Complete product quality traceability with 1-year warranty period from equipment acceptance date
- Free maintenance during warranty period; travel and material costs charged for services beyond warranty
- Free remote operation and maintenance services via Pinchi Tech AI cloud platform
- Comprehensive support for system updates, algorithm settings, software adjustments, and technical maintenance
