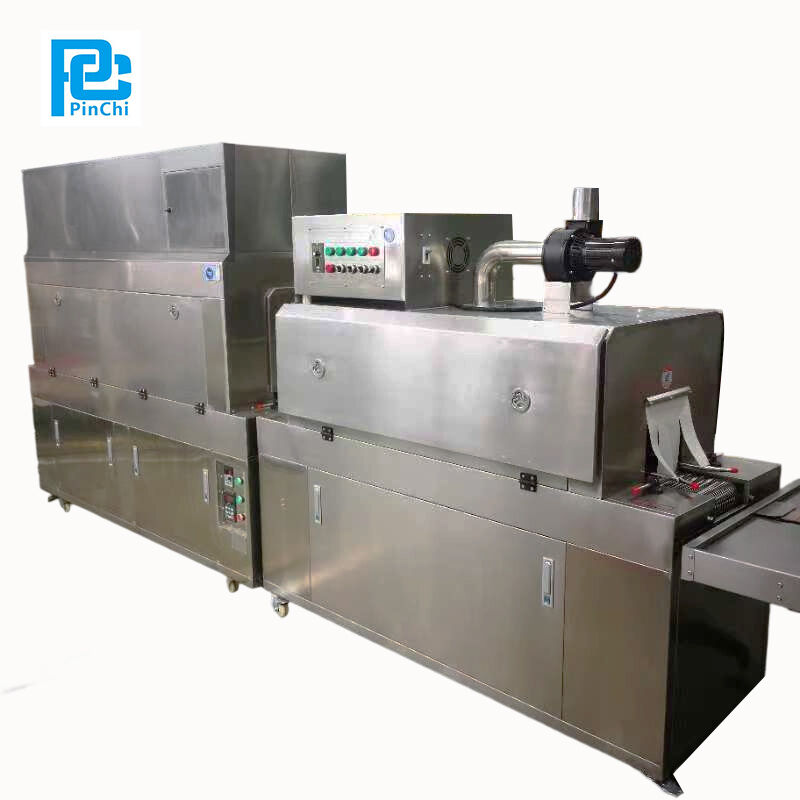

Steam Shrinking Sleeve Machine with Super Permanent Air Dyer
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Model Number | FGW20202018PU-YD-YC7.5KW |
Product Details
Host Dimensions::
900L*2000W*2200H Mm
Labeling Machine Weight::
Approximately 200 Kg
Operating Temperature::
Ambient Temperature ±5°C
Label Length Range::
50–150 Mm (Max)
Label Thickness::
0.035–0.08 Mm
Applicable Bottle Diameter Range::
25-40mm
Labeling Machine Power Supply::
AC 2PH 50Hz 220V
Labeling Machine Operating Speed::
Normal Operating Speed 3600 Units Per Hour
Labeling Machine Power Consumption::
2.5 KW
Highlight:
7500W wine bottle shrink wrap machine
,wine bottle shrink wrap machine 750mm
,380V sleeving machine for bottles
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Steam Shrinking Sleeve Machine with Super Permanent Air Dyer and 7.5KW Power for 3600 Units/Hour Bottle Shrinking
Steam Shrinking Sleeve Machine with Super Permanent Air Dryer - Horizontal Type
Technical Specifications Of Steam Shrinking Sleeve Machine
| Model | FGW20202018PU-YD-YC7.5KW | Platform Height | 750mm |
| Specifications | 200x200 | Conveyor Belt | PU Food-Grade Lower Belt, Synchronous PU Upper Pressure Belt (L) |
| Color | Stainless Steel Metallic Finish | Conveyor Load Capacity | 10KG |
| Surface Finish | Brushed | Machine Weight | 100KG |
| Air-Drying Tunnel Dimensions | 1600(L)x200(W)x200(H)mm | Primary Materials | 304 Stainless Steel |
| Conveyor Dimensions | 2000mm(L) | Conveyor Motor | Variable Frequency Drive Motor |
| Machine Dimensions | 2000(L)x800(W)x1000(H)mm | Bottle Clamping Belt Motor | Variable Frequency Drive Motor |
| Conveyor Speed | Adjustable, 0-20 m/min | Air-Drying System | Spider-Bead Hand Mouthpiece + Air Knife |
| Power Supply | 380V 50-60Hz | Air-Drying Efficiency | 100 bottles per minute |
| Total Power | 7.5KW | Air-Drying Effectiveness | 99.9% droplet-free residue |
| Air-Drying Motor | Super Permanent Magnet 7.5KW (Delivers 3x higher airflow than comparable high-voltage motors) | Leak Prevention System | Mid-body leak-proof design with centralized condensate drainage |
Performance Features Of Steam Shrinking Sleeve Machine
- Steam Shrinking Sleeve Machine equipped with a high-efficiency air drying system, capable of processing 100 bottles per minute
- Exceptional 99.9% droplet-free drying performance
- Advanced leak prevention with centralized condensate drainage
- Super permanent magnet motor technology for superior airflow performance
- Food-grade PU conveyor belts for safe product handling
- Variable frequency drive motors for precise speed control
Ordering & Payment Terms Of Steam Shrinking Sleeve Machine
| Product Description | Steam Shrinking Sleeve Machine With Super Permanent Air Dryer Horizontal Type |
| Place of Origin | Made in China |
| Tax Status | With VAT |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days, customer bears engineer's local food, accommodation, and travel expenses; additional time charged at USD 150/day |
After-Sales Service & Support Of Steam Shrinking Sleeve Machine
Quality Assurance: Full product quality traceability with 1-year warranty period from equipment acceptance date.
Warranty Coverage: Free maintenance during warranty period; travel and material costs apply for services beyond warranty.
Remote Support: Complimentary remote operation and maintenance services via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
