SUS304 Leak Tester Machine 300ml Automatic Leak Testing Machine Odm
|
SUS304 Leak Tester Machine 300ml Automatic Leak Testing Machine Odm
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Scope Of Application::
Containers Such As Bottles And Jars Used In The Food, Beverage, Dairy, And Pharmaceutical Industries.
Leak Detection Method::
Follow-up
Adjustment Method::
Automatic Adjustment
Production Capacity::
For Example, 300ml Bottles: 20,000 Bottles Per Hour
Packing Details::
Export Standerd Wooden Case
Delivery Time::
40 Days
Material:
Made Of SUS#304 Stainless Steel And Aluminum Alloy
Warranty:
1 Year
Highlight:
sus304 leak tester machine
,leak tester machine 300ml
,300ml automatic leak testing machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

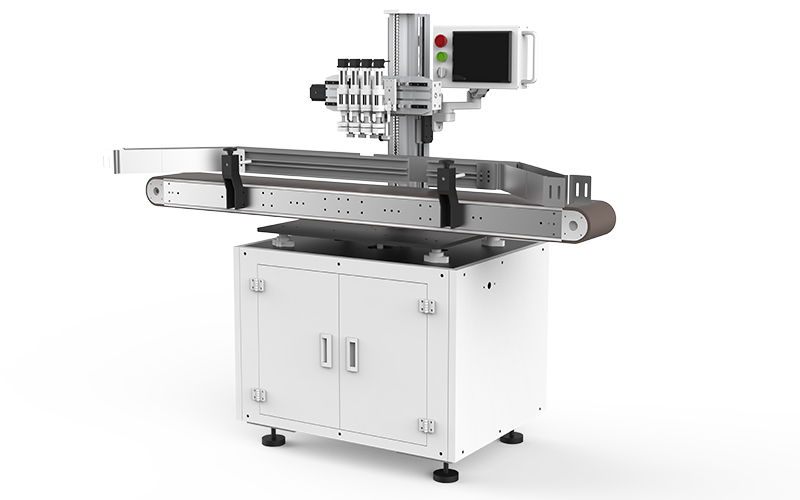

Multi-Head Follow-Up Leak Tester Machine with Automatic Adjustment for 20,000 Bottles Per Hour Container Leak Detection
TS16-03C-N Multi-Head Follow-Up Leak Tester
Equipment Overview
The plastic bottle leak tester is engineered for manufacturing and processing enterprises, specifically designed to inspect seal integrity of containers including bottles and jars in food, beverage, dairy, and pharmaceutical industries. This critical quality control equipment ensures products maintain quality standards by preventing packaging leaks and extending shelf life.
Featuring PLC control for enhanced operational flexibility and a user-friendly touchscreen interface, this leak tester enables simultaneous multi-station testing to maximize production efficiency. The system promptly identifies defective products, significantly improving overall manufacturing quality control.
This versatile plastic bottle leak tester is suitable for airtightness inspection of various bottles and hollow containers, making it an ideal quality assurance solution for hollow product manufacturers.
Key Features
- Standalone installation compatible with bottle blowing machines
- Pneumatic pressure leak detection medium optimized for hollow products
- Digital leak detection timing for simplified operation
- No component replacement required when changing bottle types - quick adjustment in approximately two minutes
- SUS#304 stainless steel and aluminum alloy construction with anodized sandblasted finish
- Rust-resistant design compliant with GMP standards
- Premium materials ensuring enhanced structural integrity
- Branded electronic components for superior stability and reduced failure rates
- Large control cabinet facilitating efficient cooling and simplified inspection
- Coordinated movement system delivering smooth, stable performance and long-lasting durability
Technical Specifications
| Leak Detection Method | Follow-up |
| Bottle Change Adjustment Method | Automatic Adjustment (No component replacement required; approximately 3 minutes) |
| Testing Method | Voltage Drop |
| Number of Leak Detection Probes | N |
| Leak Test Diameter | Custom |
| Test Aperture | 0.2 mm |
| Data Storage | 50 sets |
| Test Bottle Height | Adjustable from 60 to 380 mm |
| Leak Detection Head Height from Ground | Adjustable from 900 to 1550 mm |
| Conveyor Belt Height Above Ground | 850-1200 mm, adjustable |
| Conveyor Belt Included | Yes |
| Conveyor Belt Width | 200mm |
| Conveying Direction | Rightward (as viewed from operator's front) |
| Bottle-kicking Function | Available |
| Bottle-to-bottle Function | To be determined based on bottle type |
| Maximum Leak Detection Throughput (300ml bottles) | 20,000 bottles per hour (throughput inversely proportional to bottle volume) |
| Frame Material | Powder-coated Carbon Steel |
| Power Supply | AC 380V/50Hz |
| Air Source | 0.6-0.8 MPa |
| Equipment Dimensions | Length 1600mm × Width 800mm × Height 1600mm |
Payment Terms and Trade Conditions
| Description of Goods | Bottle Inspection Machine with VAT |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, extended coverage for software & system |
| Commissioning | Free commissioning within 3 days; customer bears engineer's local food, accommodation, and tickets; additional time charged at USD 150/day |
After Sales Service
Complete product quality traceability with 1-year warranty period calculated from equipment acceptance date.
Free maintenance during warranty period; travel and material costs apply for service beyond warranty period.
Daily operation and maintenance services: Our company provides free remote operation and maintenance through the Pinchi Tech AI cloud platform, including system updates, algorithm settings, software adjustments, and technical support.
