100ml To 1L Bottles Leak Tester Machine Airless Vacuum Leak Tester 1800mm
|
100ml To 1L Bottles Leak Tester Machine Airless Vacuum Leak Tester 1800mm
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Features:
No External Compressed Air Source Required, Eliminating Contamination Risks From Compressed Air; No Cylinder Expansion, High Leak Detection Efficiency, High Precision, And Quick And Efficient Changeovers And Machine Adjustments.
Scope Of Application:
Suitable For 100ml To 1L Bottle Sizes Across Various Industries
Production Capacity:
Taking A 100ml Bottle As An Example, The Single-head Production Capacity Is Typically Around 5,000 To 7,000 Bottles Per Hour.
Equipment Dimensions:
L1650mm*W550mm*H1800mm
Maximum Power Consumption:
3KW/H
Warranty:
1 Year
Packing Details:
Export Standerd Wooden Case
Adjustment Method:
Motorized
Highlight:
vacuum leak tester 1800mm
,100ml vacuum leak tester
,100ml leak tester machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
16-02C Airless Leak Tester Machine with No External Compressed Air Source High Leak Detection Efficiency and Motorized Adjustment for 100ml to 1L Bottles

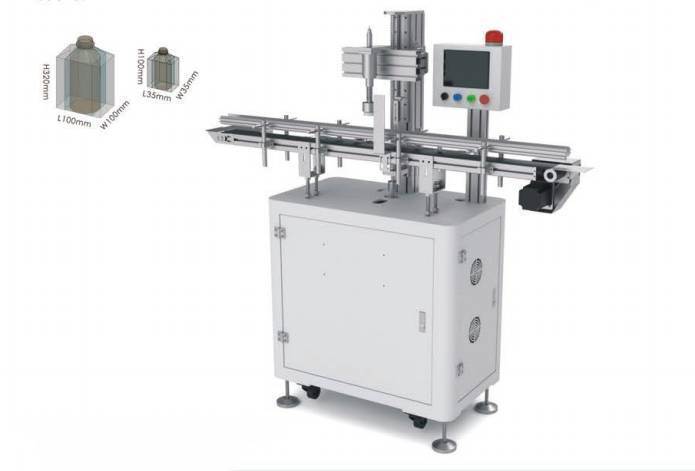

16-02C Airless Leak Tester
Equipment Characteristics
The 16-02C Airless Leak Tester operates without external compressed gas injection, eliminating the risk of compressed gas source contamination. The bottle body does not expand during testing, ensuring high leakage detection efficiency with exceptional precision. This system features rapid production changeover and easy machine adjustment, making it suitable for various industries handling 100ml-1L bottle types. For example, with 100ml bottles, single-head production capacity typically reaches approximately 5,000-7,000 bottles per hour.
Basic Performance Specifications
| Equipment Dimensions (L×W×H): | 1650mm × 550mm × 1800mm | Leak Test Form: | No external compressed air source required |
|---|---|---|---|
| Equipment Frame Material: | T2.0 Carbon Steel Welding | Maximum Single Head Capacity: | 7,000 bottles per hour (based on 100ml bottles at standard testing accuracy) |
| Equipment Appearance: | Sheet metal spraying gray/white | Maximum Multiple Head Capacity: | 20,000 bottles per hour (based on 100mL bottles at standard detection accuracy) |
| Input Gas Source: | 0.6-0.8MPa | Adjustment Method: | Motorized |
| Input Voltage: | 380V 50Hz | Detection Mode: | Pressure Drop |
| Maximum Gas Consumption: | 3L/min | Number of Leak Detection Heads: | 1-12 heads optional |
| Maximum Power Consumption: | 3KW/H | Detecting Bottle Aperture: | ≥0.2mm |
| Maximum Applicable Bottle Dimensions: | Ø100mm×H320mm; L100mm×W100mm×H320mm | Detection of Bottle Mouth Concavity: | ≥0.4mm |
| Minimum Applicable Bottle Dimensions: | Ø35mm×H60mm; L35mm×W35mm×H100mm | Kick Function: | Standard |
| Docking Height of Bottle Conveyor: | 1200-1000mm Adjustable | Stall Function: | Standard |
| Entrance/Exit Transition: | Direct transition/lateral transition | Bottle Parameter Recipe Storage: | 50 groups |
| Entrance/Exit Transition Device: | Transition plate/clamping conveyor | System Remote Communication Function: | Yes |
| Conveyor Belt Negative Pressure Suction: | Optional based on bottle shape | System Operation Authority: | 3 Levels |
| Conveyor Belt Conveying Direction: | Both left and right |
Payment Terms and Trade Information
| Product Description | 16-02C Airless Leak Tester (With VAT) |
|---|---|
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term support for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local food, accommodation, and tickets; extra time charged at USD 150/day) |
After Sales Service
The overall product quality is fully traceable, with a product quality warranty period of 1 year calculated from the date of equipment acceptance.
Service Details:
• Free maintenance during warranty period
• Travel and material costs charged for service beyond warranty period
• Free remote operation and maintenance via Pinchi Tech AI cloud platform
• Includes system updates, algorithm settings, software adjustments, and more
• Free maintenance during warranty period
• Travel and material costs charged for service beyond warranty period
• Free remote operation and maintenance via Pinchi Tech AI cloud platform
• Includes system updates, algorithm settings, software adjustments, and more
