304SS Cap Slitting And Folding Machine 600 Pieces/Minute Bottle Flanging Machine
|
304SS Cap Slitting And Folding Machine 600 Pieces/Minute Bottle Flanging Machine
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
Product Details
Features:
Compact Structure, High Automation, Simple Operation, Compliant With Hygiene And Safety Standards.
Scope Of Application:
Anti-theft Measures For Various Plastic Caps, Including Mineral Water Caps, Beverage Caps, And Pharmaceutical Caps.
Automatic Grade:
Automatic
Capacity:
Greater Than 500 Liters
Material:
Stainless Steel
Warranty:
1 Year
Packing Details:
Export Standerd Wooden Case
Delivery Time:
40 Days
Highlight:
304SS cap slitting and folding machine
,3500W cap slitting and folding machine
,600 Pieces/Minute Bottle Flanging machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
10000-20000USD
Packaging Details
WOODEN BOX
Delivery Time
30WORKDAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description

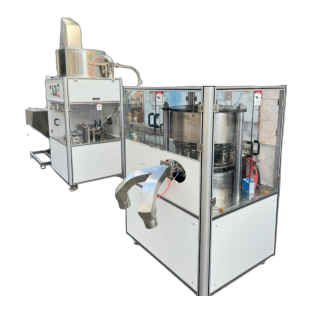

Automatic 304 Stainless Steel Cap Slitting Machine with 600 Pieces/Minute Capacity for Plastic Bottle Flanging
Plastic Bottle Cap Flanging and Ring Cutting Integrated Molding Machine
This high-speed integrated system combines cutting, ring forming, and folding operations specifically designed for plastic bottle caps of varying dimensions. The machine integrates ring cutting and edge bending functions on a single frame connected via spindle, optimizing production efficiency by completing edge bending before ring cutting.
Equipment Specifications
The system utilizes mechanical transmission with pneumatic or motor control to achieve automated ring cutting operations, making it ideal for mass production of plastic bottle caps. The design accommodates processing requirements for caps of different specifications.
Operating Principle
- Feeding: Bottle caps enter continuously at specific speed and spacing through the feeding system
- Positioning: Precise alignment ensures each cap remains accurately positioned at the cutting station
- Cutting: High-speed rotating blades perform precise cutting to remove excess ring-shaped material
- Collection: Processed caps are collected for subsequent processing or packaging
Technical Specifications
| Primary Material | Aluminum, 304 stainless steel |
|---|---|
| Housing Material | PC plastic dust cover |
| Other Materials | Stainless steel/white painted panel |
| Compatible Dimensions | 5300x1200x2800 (mm) |
| Production Capacity | 600 pieces/minute (standard) |
| Cap Type | 3025, 2925, 2622, 28, 1881... |
| Maximum Cap Cutting Height | Adjustable |
| Number of Cutting Rings and Folding Stators | 12 or 16 |
| Cap Hopper Capacity | Greater than 500L |
| Total Installed Power | Less than 3.5kW |
| Compressed Air Requirements | Less than 6 kg/cm |
| Air Consumption | Less than 1 m/min |
Equipment Detail Diagram
Diagram Components:
① Ring entry cap track with dual sensors (green light when empty, yellow light when occupied)
② Ring cutting and cap track system
③ Cap plate for horizontal alignment during cutting
④ Adjustable cap plate fixing columns (4 total)
⑤ Cutting ring turntable with workstation mold (16 stators)
⑥ Safety door sensors with magnetic detection
① Ring entry cap track with dual sensors (green light when empty, yellow light when occupied)
② Ring cutting and cap track system
③ Cap plate for horizontal alignment during cutting
④ Adjustable cap plate fixing columns (4 total)
⑤ Cutting ring turntable with workstation mold (16 stators)
⑥ Safety door sensors with magnetic detection
Payment Terms & Trade Information
| Product Description | Plastic Bottle Cap Flanging and Ring Cutting Integrated Molding Machine (With VAT) |
|---|---|
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Term | T/T, 30% deposit, 70% to be paid before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long term for software & system |
| Commissioning | Free commissioning within 3 days (customer bears engineer's local expenses) |
After Sales Service
Full product quality traceability with 1-year warranty period from equipment acceptance date. Free maintenance during warranty period with service charges applicable thereafter. Daily operation and maintenance services include free remote support via Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
