2.5KW Bottle Shrinking Machine PVC POF Bottle Labeling Machine
|
2.5KW Bottle Shrinking Machine PVC POF Bottle Labeling Machine
| Place of Origin | FOSHAN |
| Brand Name | PINCHI |
| Model Number | NC-100 |
Product Details
Price:
30000-50000usd /per Set
Material:
304 Stainless Steel
Automatic Grade:
Automatic
Shrink Wrap:
PVC 、POF、 PET
Power:
2.5KW
Warranty:
1 Year
Shrinkage Rate:
3,000 Bottles Per Hour
Labeling Machine Weight:
Approximately 200 Kg
Packing Details:
Export Standerd Wooden Case
Delivery Time:
40 Days
Highlight:
2.5KW Bottle Shrinking Machine
,Bottle Shrinking Machine PVC
,POF bottle labeling machine
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
WOODEN BOX
Delivery Time
30 WORK DAYS
Payment Terms
T/T
Supply Ability
20SETS
Product Description
Automatic 304 Stainless Steel Bottle Shrinking Machine with 3600 Units/Hour Speed and 2.5KW Power

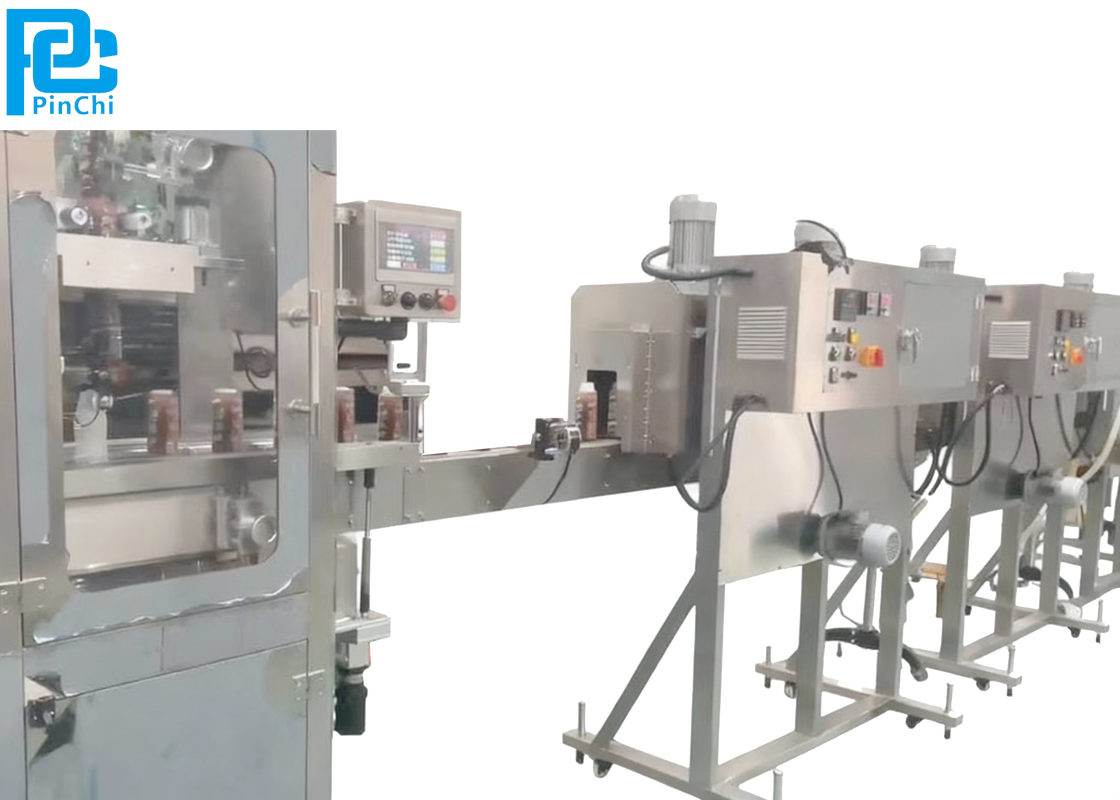

Yogurt Cup Hot Air Furnace Sleeve Shrinking Machine NC-100
This advanced sleeve shrinking machine is engineered for shrink films of various specifications, including PVC, POF, and PET. It combines innovative airflow contraction technology with precision engineering to deliver uniform air distribution and exceptional contraction performance.
Key Features & Construction
- Constructed entirely of stainless steel for extended service life and high energy efficiency
- Premium electrical components from renowned manufacturers ensure stable operation and low failure rates
- Robust conveyor and air distribution motors provide reliable power for continuous operation
- Silicone-coated conveyor rollers offer high-temperature resistance and prevent film overheating
Note: Carbon steel with paint coating is not recommended, as carbon steel is prone to rusting and produces impurities at high temperatures, failing to meet medical device requirements.
Technical Specifications
| Main Unit Dimensions: | 900L × 2000W × 2200H mm |
| Machine Weight: | Approximately 200KG |
| Operating Temperature: | Ambient ±5℃ |
| Applicable Label Length: | 50-150mm (Maximum) |
| Label Thickness: | 0.035–0.08mm |
| Bottle Diameter Range: | 25-40mm |
| Power Supply: | AC 2PH 50Hz 220V |
| Operating Speed: | 3600 units/hour at normal operation |
| Power Consumption: | 2.5KW |
This model includes a 2-meter powered conveyor belt with chain plates. The conveyor belt within the labeling section is powered and controlled by the labeling machine itself.
Sleeve Labeling Operation Principle
When a bottle passes through the detection sensor on the conveyor belt, the servo-controlled drive assembly automatically dispenses one label. Simultaneously, the lower label application roller assembly brushes the next label into position for application to the bottle.
Technical Documentation
Ordering & Payment Information
| Product Model | Yogurt Cup Hot Air Furnace Sleeve Shrinking Machine NC-100 |
| VAT Status | Included |
| Place of Origin | Made in China |
| Price Validation | 100 days |
| Payment Terms | T/T, 30% deposit, 70% before loading against FAT |
| Delivery Time | 35 days after receipt of advanced payment |
| Warranty | 1 year for complete machine, long-term for software & system |
| Commissioning |
Free commissioning within 3 days; customer bears engineer's local expenses;additional time charged at USD 150/day |
After-Sales Service & Support
Our products feature comprehensive quality traceability with a 1-year warranty period from equipment acceptance date. We provide free maintenance during warranty period, with travel and material costs applicable for service beyond warranty.
Daily operation and maintenance services include free remote support through our Pinchi Tech AI cloud platform for system updates, algorithm settings, and software adjustments.
